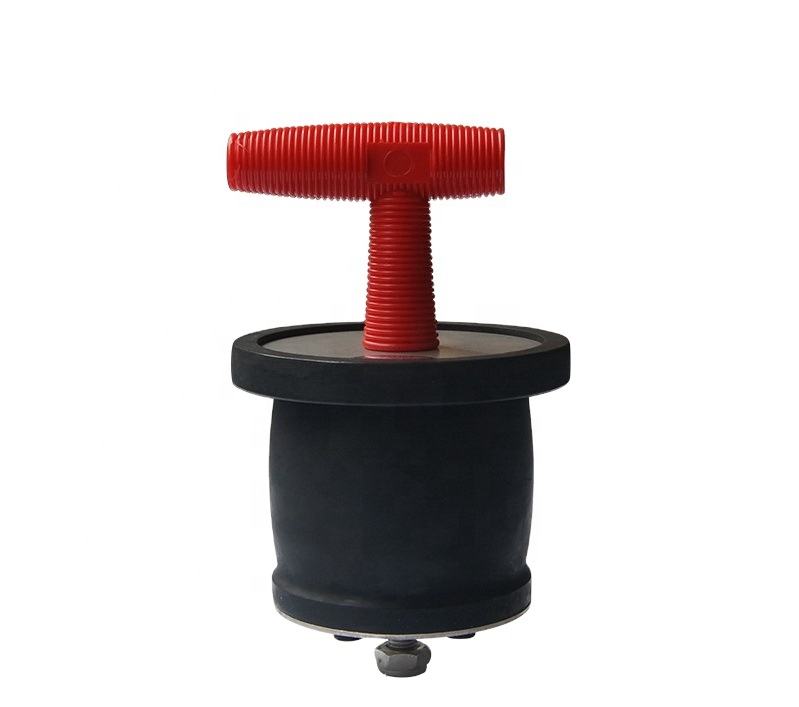

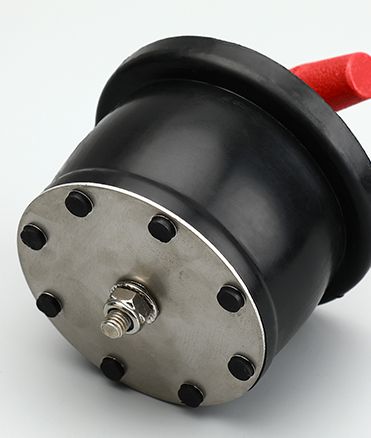

Scupper Plug
IMPA Code:232481-232487
Scupper Plugs
IMPA CODE: 232481-232487
1. For sealing the scupper holes for spilled oil or pulluted liquids.
2. Easy to use, insert plug in the drain hole and tighten the handle until a slight resistance is felt, the rubber
plug will be expanded and held firmly in place.
3. Rubber parts are made of oil resistant rubber.
4. Seven types are available according to the pipe size.
5. Specification
| IMPA Code | Dimensions mm | Applicable Drain Pipe Size | our Code | |||||
| d | D | I | L | mm | inch | Stainless Stee | Brass | |
| 232481 | 45 | 65 | 55 | 145 | 50 | 2" | 23248100 | 23248101 |
| 232482 | 52 | 75 | 55 | 145 | 50-63 | 2"~2-1/2" | 23248200 | 23248201 |
| 232483 | 65 | 85 | 65 | 160 | 63-75 | 2-1/2~3" | 23248300 | 23248301 |
| 232484 | 85 | 110 | 65 | 160 | 100 | 4" | 23248400 | 23248401 |
| 232485 | 90 | 115 | 65 | 160 | 100-125 | 4~5" | 23248500 | 23248501 |
| 232486 | 110 | 135 | 65 | 160 | 125-150 | 5~6" | 23248600 | 23248601 |
| 232487 | 135 | 160 | 65 | 160 | 150 | 6" | 23248700 | 23248701 |
| 232488 | 165 | 200 | 75 | 170 | 200 | 8" | 23248800 | 23248801 |
